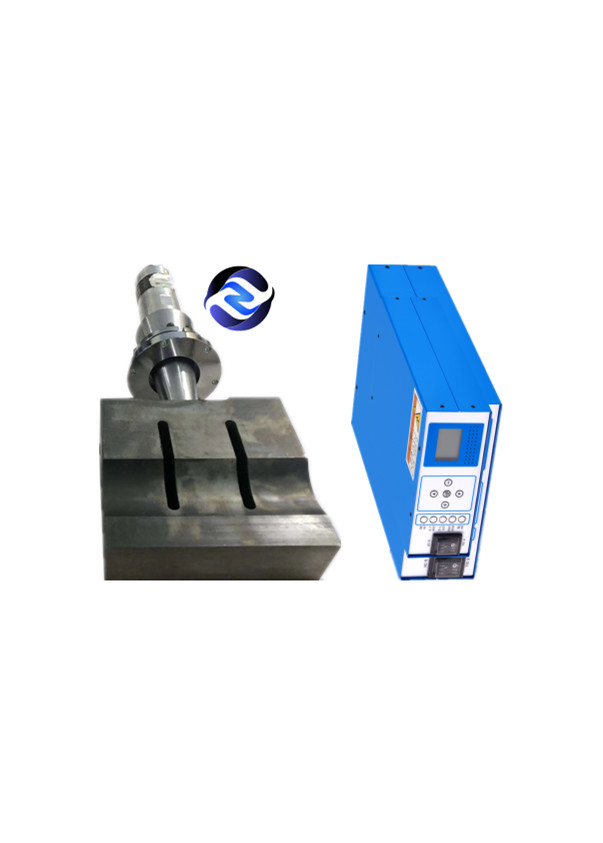

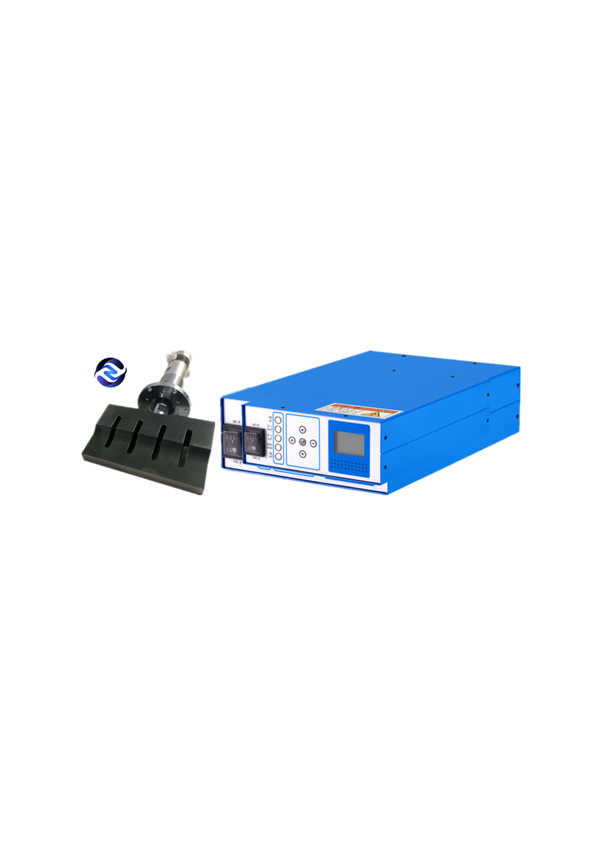

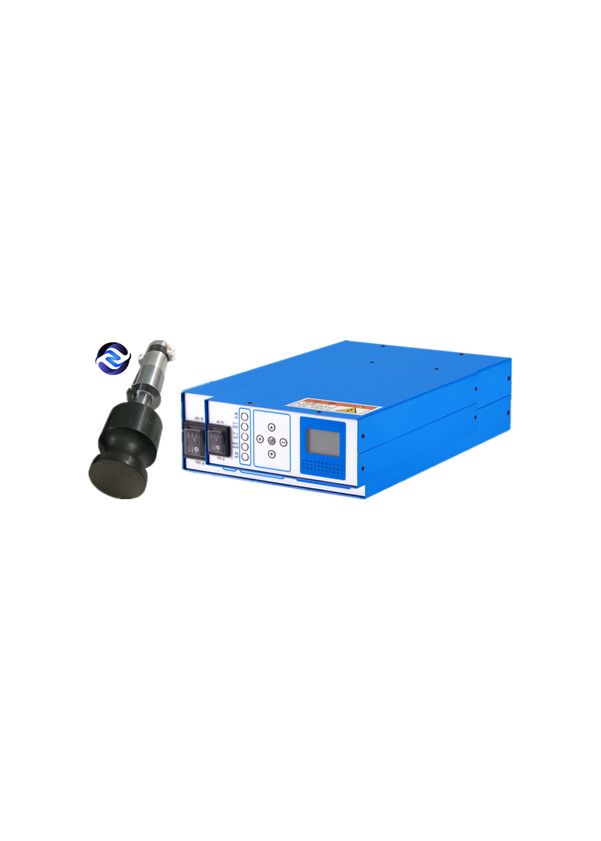

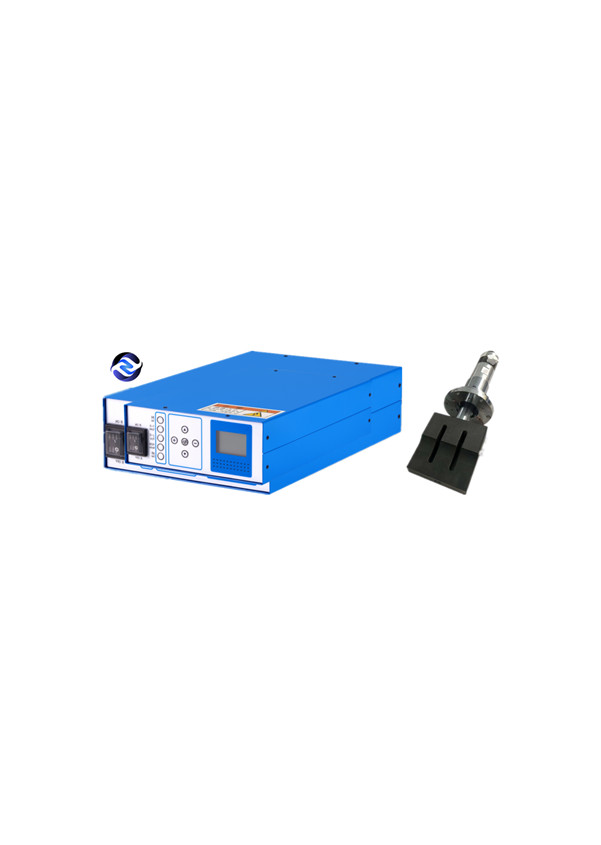

15KHZ 2.6KW Ultrasonic Plastic Welding Machine Spot Welder 200 X 25mm

Basic Information

Place of Origin:	China
Brand Name:	zhiyao
Model Number:	K2026

Minimum Order Quantity:	1set
Price:	＄600/set
Packaging Details:	Carton packaging and Wooden packing
Delivery Time:	1 work days
Payment Terms:	T/T
Supply Ability:	2000 sets / month

Get Best Price Contact Now

Name:	Ultrasonic Plastic Welding Machine	Voltage:	AC220V ±10%
Power:	2600W	Frequency:	15/20KHZ
The Die Width:	80-270mm	Die Material:	Steel
High Light:	15KHZ Ultrasonic Plastic Welding Machine , 2.6KW Ultrasonic Plastic Welding Machine , ultrasonic plastic spot welder 200 X 25mm

20KHZ 2600W Ultrasonic plastic welding machine

Ultrasonic welding is to transmit high-frequency vibration waves to the surface of two objects to be welded, and under pressure, the surfaces of the two objects rub against each other to form a fusion between molecular layers. When ultrasonic waves act on the thermoplastic plastic contact surface, tens of thousands of high-frequency vibrations per second will be generated, and the ultrasonic energy will be transmitted to the welding area, which will produce local high temperatures due to the large acoustic resistance at the interface of the two welding areas.

1. The equipment adopts ultrasonic welding method to fuse the elastic band on the outside of the mask body, and the machine is a process of the outer ear mask production equipment.

2. Only one operator needs to place the mask body in the mask tray, and the subsequent actions are automatically operated by the equipment.

3. Production process: the introduction of body pieces, welding belts, loose belts to cut short / welding, the whole process of automation

4. Small size does not occupy space, using aluminum alloy structure, beautiful and strong.

5.plc programming control, the degree of automation is extremely high. Photoelectric detection of raw materials, avoid mistakes and reduce waste. High stability and low failure rate.

● Environmental protection: no traditional solvent, binder and heat sealing process, do not consume a large amount of heat source, belongs to non-polluting, non-toxic safety production;

● Intelligent: automatic frequency search during work, automatic frequency follow-up, program controllable. Ultrasonic amplitude from 0% to 100% stepless adjustable, can match the welding of different thermoplastic materials;

● Efficient: fast welding speed, high strength, low welding cost, can achieve automatic high-quality welding.

● Beautiful: the weld joint is smooth and flat, and the appearance is beautiful.

Frequency	20KHz	20KHz	20KHz	20KHz	20KHZ	15KHz	15KHz	15KHz
Power	2600W	2600W	2600W	2600W	2600W	2600W	2600W	2600W
The die width	110*25 mm	200*25mm	D80	160*55 mm	270*25mm	200*25 mm	270 *25mm	160*55 mm
Die material	steel	steel	steel	steel	steel	steel	steel	steel
