17KW AC220V Handheld Ultrasonic Welding Machine For KF94 95 Mask

Basic Information

Place of Origin:	China
Brand Name:	zhiyao
Model Number:	KFXX

Minimum Order Quantity:	1set
Price:	＄20000-50000/set
Packaging Details:	Wooden packing
Delivery Time:	10 work days
Payment Terms:	T/T
Supply Ability:	200 sets / month

Get Best Price Contact Now

Name:	Ultrasonic Mask Machine	Voltage:	AC220V ±10%
Power:	17KW	Atmospheric Pressure:	0.6-0.8MPa
Air Consumption:	10L/min	Full Line Efficiency:	80-120pcs/min
Ultrasonic Power:	2600/3200W
High Light:	17KW handheld ultrasonic welding machine , AC220V handheld ultrasonic welding machine , ultrasonic welding plastic machine OEM

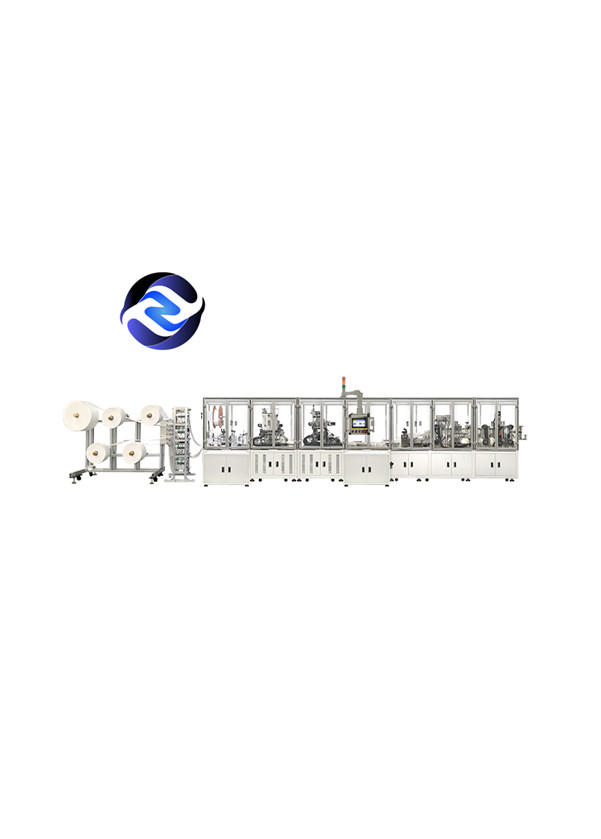

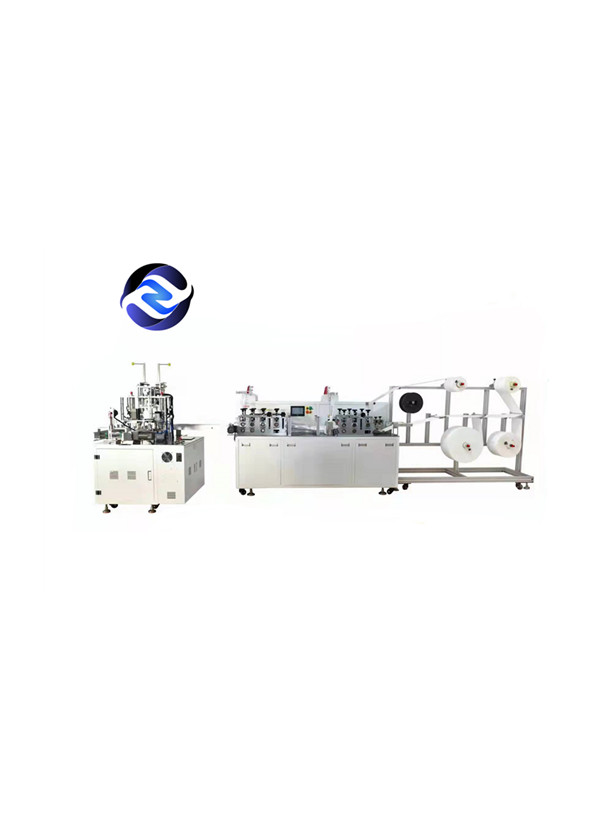

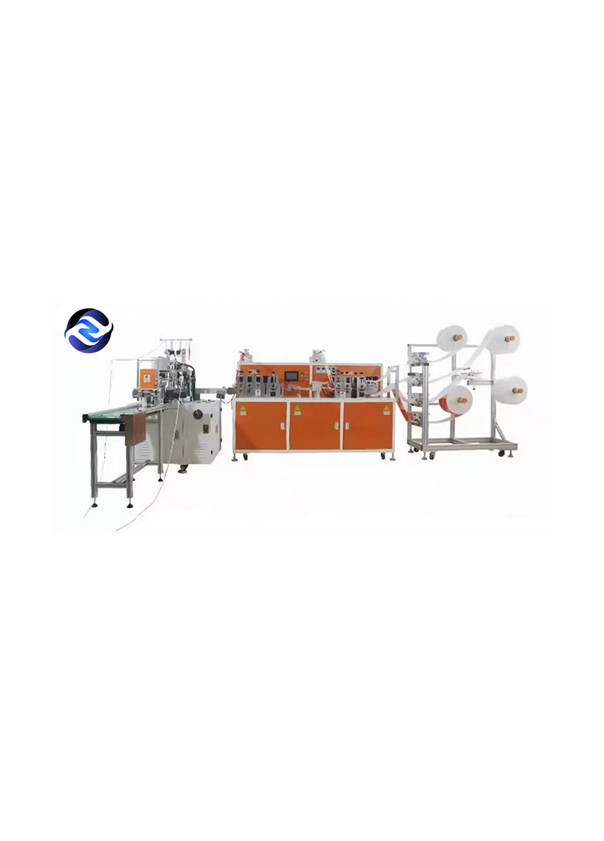

KF94 95 Ultrasonic mask machine

Equipment advantages:

1, the use of computer PLC programming control, servo drive, high degree of automation. The machine runs fast and has stable performance.

2, the use of ultrasonic welding technology, the finished product is beautiful, hygienic, environmental protection.

3, the use of DC53 steel mold, welding belt strong, solder joint performance is beautiful.

4. The whole production line from raw material feeding, nose line insertion, edge banding, cutting, folding, folding edge, mask cutting, welding ear straps, ear band inversion, finished product output are automated operations, efficient and labor-saving.

5. The frame structure is made of aluminum alloy, the key parts are made of stainless steel, and the whole line has the characteristics of durability, easy to clean and beautiful.

6. The man-machine interface is set in Chinese and English, and the parameter setting adjustment is simple and convenient. A third language can also be added based on user needs.

7, the use of 8 axis 8 servo control system, the equipment operation is stable, adjustment is simple and easy to operate. Using a round spot welding head, the spot welding position is precise, and the spot welding effect is firm and beautiful.

Raw material parameters:

a. Upper non-woven fabric, width 260mm, 50g/㎡

b. Medium layer meltblown cloth, width 260mm, 25g/㎡

c. Medium layer meltblown cloth, width 260mm, 25g/㎡

d. Lower non-woven fabric, width 260mm, 25g/㎡

e. Nose bridge strip, roll material, width of about 5mm double core, thickness of about 0.8-1mm

f. Ear band wire, diameter about 3mm

g. The diameter of the cloth roll core is 76mm, and the maximum outer diameter of the cloth roll is 600mm

Technical parameters:

Model	KF40(KF94)	KF50(N95)
Full line efficiency	100-120pcs/min	80-120pcs/min
Mask size	200*80mm,Equipment can be customized according to the size of the mask
ultrasonic	Tablet machine:15K 2600W(2cover)Frequent waves Ear strap machine:15K 2600W(2cover)Intermittent waves	15K 3200W2 20K2600W2
Servo motors	8servo3个750W,5个400W)
Length of the nose bridge strip	70-100mm,The settings can be adjusted according to the length of customer requirements
Earband weld strength	The fracture strength at the junction of each mask belt and the mask body is not less than 10N
voltage	AC220V
frequency	50-60Hz
power	17KW
atmospheric pressure	0.6-0.8MPa
Air consumption	10L/min
weight	1500kg	2000KG
Device size	L6583W3775H1520mm
Wooden box packing size	Tablet machine:L3360W1260H1850mm Ear strap machine:L2160W1060H1750mm Rack:L2160W1160H1910mm
