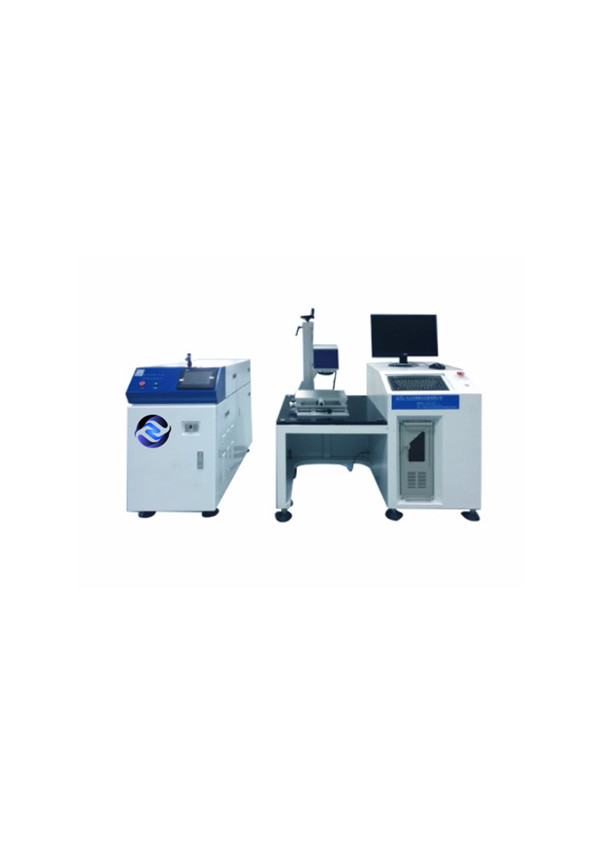

500W Fiber Laser Welding Machine

Basic Information

Place of Origin:	China
Brand Name:	zhiyao
Model Number:	WL500

Minimum Order Quantity:	1set
Price:	＄28000/set
Packaging Details:	Wooden packing
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	50 sets / month

Get Best Price Contact Now

Name:

Laser Welding Machine

Power:

500W

Product Advantages:

1. Optical Fiber Optical Transmission, Uniform Spot, Good Welding Effect: After The Laser Is Transmitted Through The Optical Fiber, The Collimation Is Directed To The Parallel Light Through The Collimated Lens, And Then The Laser Welding Equipment Is Imple

Galvanometer Type Fiber Conduction Laser Welding System:

Spot Size 03.mm -2mm Welding Depth 0.1mm -2.5mm Table Stroke 200mm*100mm (or Customized) Motion Speed ≤ 200mm/s Control System PC Power Demand 380V±5%, 50Hz, 30A

Highlight:

500W Fiber Laser Welding Machine

0.3mm spot Fiber Laser Welding Machine

2mm spot laser engraving machine portable

500W Laser welding machine

Galvanometer fiber laser welding system adopts high-speed galvanometer scanning speed up to 7 m / S, solder joint 10 / S, multi-station continuous work, suitable for data cables, computer accessories, mobile phones, MP3, MP4 shell and other consumer electronic products high-speed spot welding and continuous welding.

The laser of the galvanometer laser welding machine realizes the rapid movement of the laser point through the oscillator swing, so the high-speed and high-precision spot welding and continuous welding of any pattern can be realized on the welding plane within the welding range, so it is greatly improved than the traditional automatic welding machine through the stepper servo motor transmission mobile workpiece welding.

Product advantages

1. Optical fiber optical transmission, uniform spot, good welding effect: after the laser is transmitted through the optical fiber, the collimation is directed to the parallel light through the collimated lens, and then the laser welding equipment is implemented by focusing on the workpiece.

2. The use of high-speed galvanometer, to achieve high-speed welding: the welding scanning head of the welding machine using the working principle of the laser marking machine, because the welding pulse laser through the oscillator swing to achieve rapid movement of the laser point, so can be within the welding range of the welding plane can achieve any pattern of high-speed and high-precision spot welding and continuous welding, so than the traditional automatic welding machine through the stepper servo motor transmission to move the workpiece welding, welding speed has a greater advantage.

Galvanometer type fiber conduction laser welding system

Power:500W

Spot size 03.mm -2mm welding depth 0.1mm -2.5mm

Table stroke 200mm*100mm (or customized) motion speed ≤ 200mm/s

Control system PC power demand 380V±5%, 50Hz, 30A
