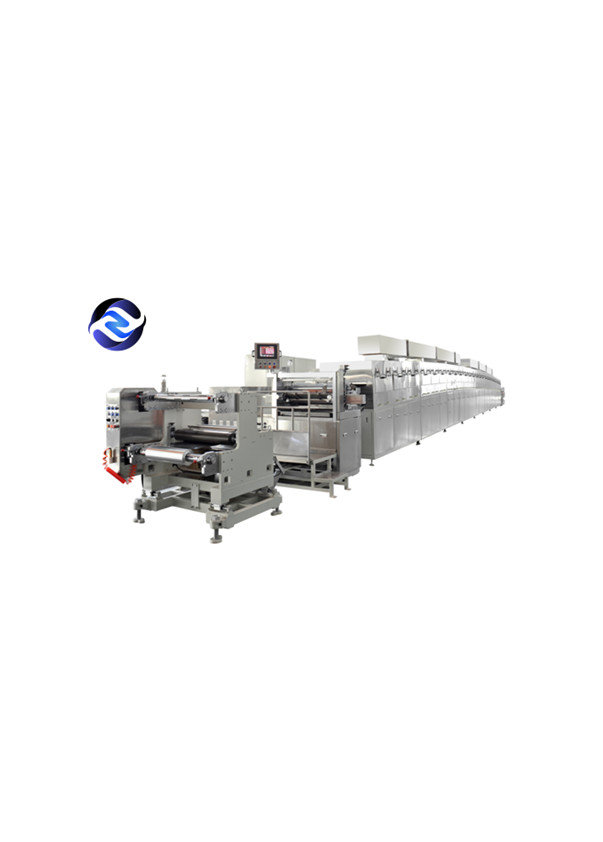

50μM Coil Lithium Ion Battery Pack Assembly Line Production Line Battery Coating Machine

Basic Information

Place of Origin:	China
Brand Name:	zhiyao
Model Number:	LDT100

Minimum Order Quantity:	1set
Price:	Details
Packaging Details:	Wooden packing
Delivery Time:	30 work days
Payment Terms:	T/T
Supply Ability:	1 sets / month

Get Best Price Contact Now

Name:

Coater、Coating Machine、Lithium Battery Production Line

Equipment Performance:

1) Coating Mode: Intermittent And Continuous Transfer Coating Can Be Realized; 2) The Retracting, Unwinding And Machine Head Roller Mounting Plate Is A Reinforced Integral Vertical Plate; 3) Intermittent Implementation Mode: Servo Motor To Push The Back Ro

Equipment Overview:

1) Maximum Coating Width: 650mm 2) Substrate Thickness: Aluminum Foil: 12-50μm, Copper Foil: 7-50μm 3) Coating Dry Thickness: 50-200μm 4) Coating Speed: ≤12m/min (according To The Length Of The Oven And The Customer Process) 5) Temperature Control Accuracy

High Light:

50μm coil lithium battery production line

lithium battery production line ODM

650mm Coating battery coating machine

Coater,Coating Machine,Lithium Battery Production Line

1, Equipment performance:

1) Coating mode: intermittent and continuous transfer coating can be realized;

2) The retracting, unwinding and machine head roller mounting plate is a reinforced integral vertical plate;

3) Intermittent implementation mode: servo motor to push the back roller;

4) Knife adjustment mode: the use of imported displacement sensor detection, servo motor drive, the formation of automatic closed-loop adjustment scraper gap (optional);

5) With head and tail thickness adjustment function;

6) Drying channel: the length of each section of the oven is 3m, and the upper and lower semi-cycle blowing method of electric heating is adopted, and the air volume is controlled by frequency conversion;

7) Automatic tension and correction control;

8) NMP solvent concentration detection and alarm (optional) in the drying channel;

9) Install an online ray thickness detection system (optional);

10) Coater overall size L*W*H, 26000*2500*2600mm (18m oven - adjustable)

2. Equipment overview:

1) Maximum coating width: 650mm

2) Substrate thickness: aluminum foil: 12-50μm, copper foil: 7-50μm

3) Coating dry thickness: 50-200μm

4) Coating speed: ≤12m/min (according to the length of the oven and the customer process)

5) Temperature control accuracy: ≤± 1 °C

6) Single-sided coating dry thickness error: ±2μm

7) Coating length, front and back coating overlap error: ±0.5mm

8) Unwinding edge neatness error: ±0.5mm

9) Maximum diameter specification of winding: coil diameter MAXΦ650mm
