Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm

Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm
Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm Two Axis Roller Pressing Slitting Lithium Battery Machine Electrode Production Line Odm
Basic Information
Place of Origin: China
Brand Name: zhiyao
Model Number: LDG11
Minimum Order Quantity: 1set
Price: Details
Packaging Details: Wooden packing
Delivery Time: 20 work days
Payment Terms: T/T
Supply Ability: 10 sets / month
Get Best Price Contact Now
Name: Roller Pressing, Slitting Machine,Lithium Battery Production Line Function: (1) Product Model: LDG11 Automatic Roll Pressing Slitting Machine (2) Product Introduction: The Production Line Of Automatic Roll Pressure Slitting Machine Is Composed Of Double Station Automatic Unwinding, Automatic Splicing, Roll Pressing, Stretching And
High Light:

two axis Lithium Battery Machine

,

Roller Pressing Lithium Battery Machine

,

lithium battery electrode production line odm

Roller Pressing, Slitting Machine,Lithium Battery Production Line

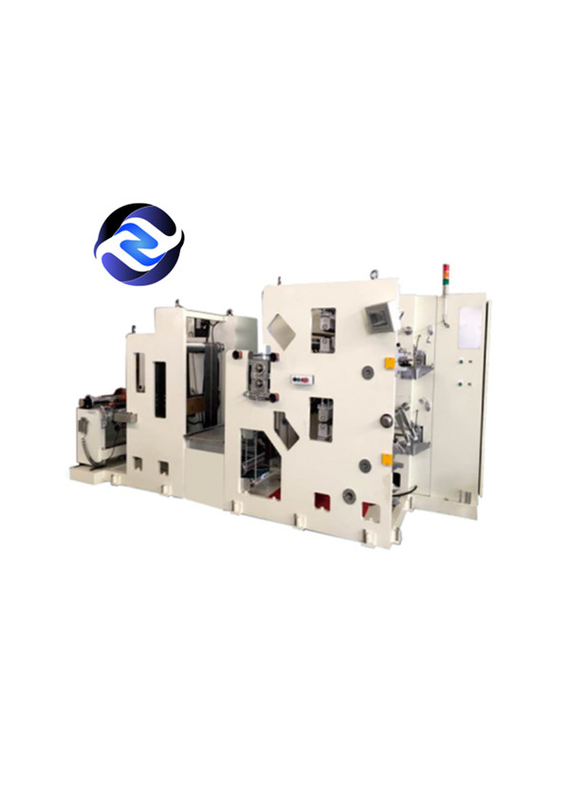

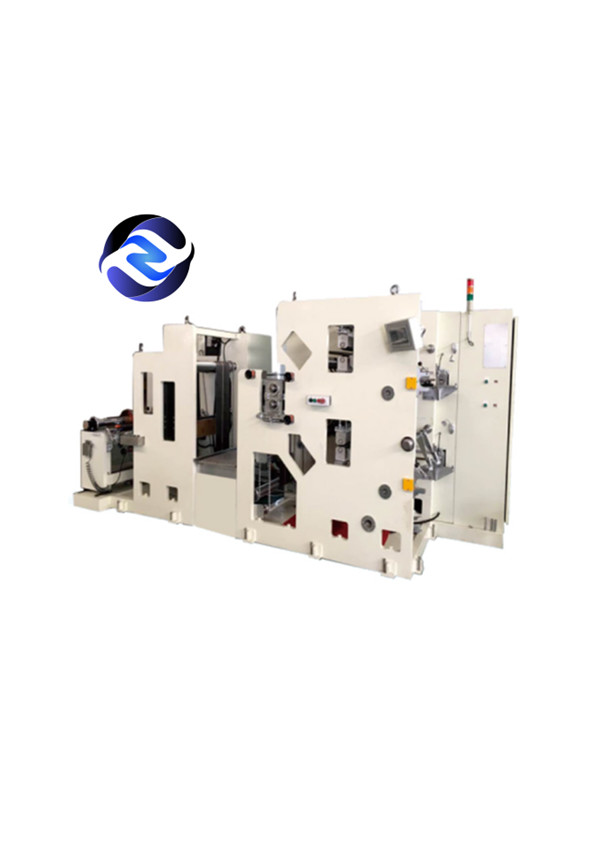

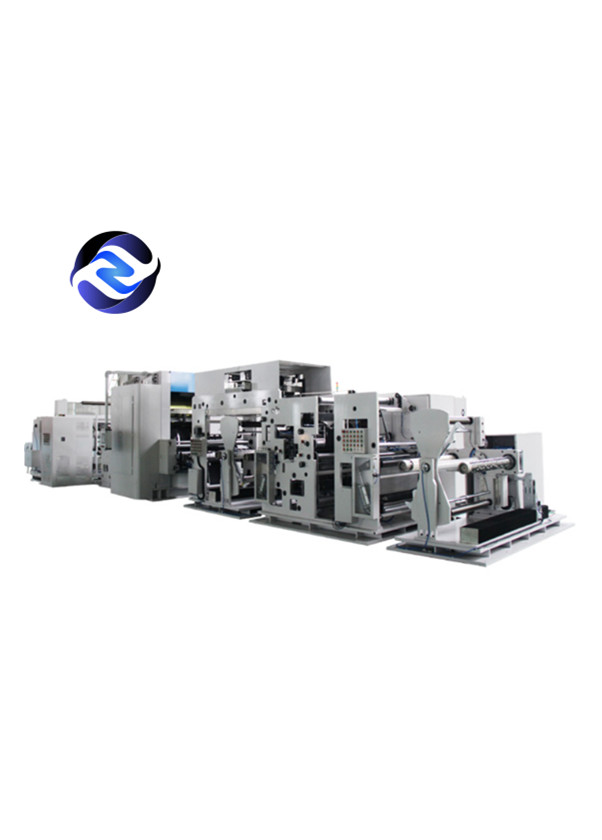

(1) Product model: LDG11 automatic roll pressing slitting machine
(2) Product Introduction: The production line of automatic roll pressure slitting machine is composed of double station automatic unwinding, automatic splicing, roll pressing, stretching and wrinkle removal, laser thickness measurement, slitting, CCD detection and marking, and four-station automatic winding, and AGV docking to achieve wide width, large coil diameter, high speed, fully automated non-stop continuous roll pressing production.
(3) Unwinding form: two-axis turntable type double-station automatic winding mode, 6-inch shaftless expansion chuck, maximum load bearing 1500KG, coil diameter range: ∮350-∮1000mm, using cloth shutdown strapping, strapping speed 10-20m/min.
(4) Loading and unloading mode: meet the docking with AGV, automatically complete the roll change.
(5) Roll specifications: ∮750 * 1100mm, the effective use of the roller surface width ≤ 1000mm, the roll installation machine round runout ≤± 0.002mm, roll speed 5-80m / min (stepless speed regulation).
(6) Stretching device: used to eliminate the wavy edges generated during the continuous or striped coating pole roll pressing process
(7) Tension control: PLC + low friction cylinder + servo motor closed-loop adjustment tension, digital display shows four-stage tension control
(8) Laser thickness measurement: Communication with the hydraulic system, the pressure of the roller press can be automatically adjusted in real time to achieve closed-loop control.
(9) Slitting knife group: after the roller is pressed, a number of continuous coating pole pieces are longitudinally cut into 2-4 coiling forms, and two groups of two-axis turntable four-station automatic rewinding mode.
(10) Retracting reel: 6 inch cantilever type air rise slip shaft, maximum load bearing 900KG.
(11) Overall size of production line: 17500*5500*3500mm.
