Cylindrical Square Transformer High Speed Winding Machine 300mm Cell

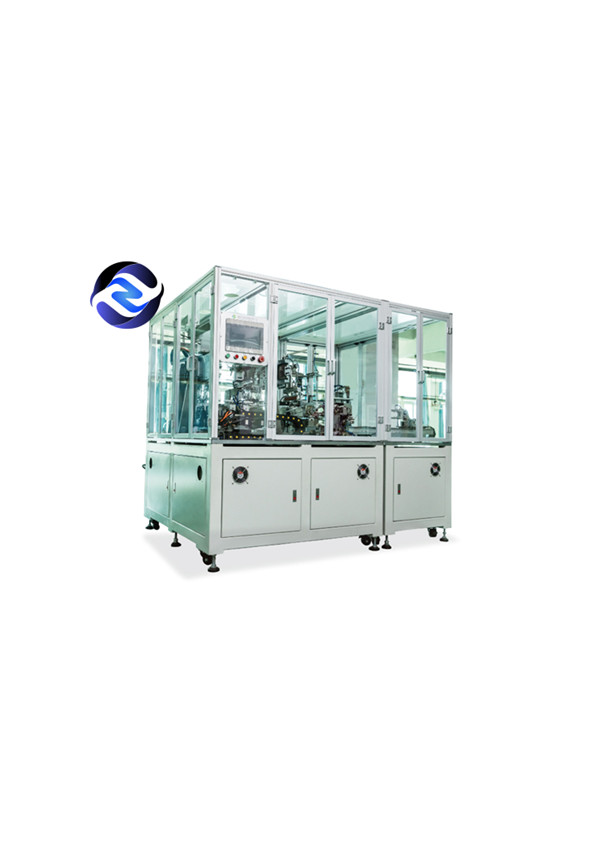

     This machine is mainly used for the production of square lithium-ion power battery cells, and the main use of Z-shaped lamination method. The positive and negative pole pieces that have been cut are placed in the material box, and the two sets of manipulator mechanisms take the positive and negative pole pieces from the material box, and after precise positioning, they are alternately stacked on the lamination platform. The diaphragm is actively unwinded by the motor, and through the tension mechanism and the correction mechanism, the lamination table is introduced. After the lamination is completed, the cell is transferred to the tail roll adhesive station through the battery cell transfer mechanism, and the tail roll is automatically tailwinded, the diaphragm is cut off, the glue is automatically applied, and the battery cell is automatically output.



Using servo motor + precision ball screw to drive the lamination table to move;

Servo motor is used for diaphragm motion compensation;

With positive and negative pole piece handling mechanism;

The use of brushes, static electricity and other mechanisms to prevent heavy film;

Adopt CCD+UVW platform to achieve secondary positioning;

Glue is applied on the four sides of the battery cell to ensure that the battery cell does not loosen and deform;

Bus-type servo control system;

Visualization of HMI parameters.

Device model	LDD01	LDD02
Polar width	80-150mm	150-300mm
Extreme ear exposure length	5-20mm	5-20mm
Polar ear exposure width	5-20mm	5-20mm
Diaphragm width	150-300mm	150-300mm
Cell width	80-150mm	150-300mm
Accuracy of alignment between the pole plate and the diaphragm	Central deviation±0.3mm
Diaphragm end facing accuracy	±0.3mm(Use the edge as a baseline for finishing alignment±0.5mm)
Adjacent pole alignment accuracy	±0.3mm(Take the center as the benchmark)
The overall alignment accuracy of the pole plates	±0.4mm(Take the center as the benchmark)
Monolithic efficiency	＜0.4-0.6S/PCS(Duplex)	＜0.8-1.2S/PCS(Single station)
Crop rate	≥98%
Yield rate	≥99%
weight	3600KG	2900KG
Dimensions	3900*1700*1960mm(Duplex)	2200*1700*1960mm(Single station)
