Jiangsu Zhiyao Intelligent Equipment Technology Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | zhiyao |
| Model Number: | LDL01 |
| Minimum Order Quantity: | 1set |
| Price: | Details |
| Packaging Details: | Wooden packing |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets / month |

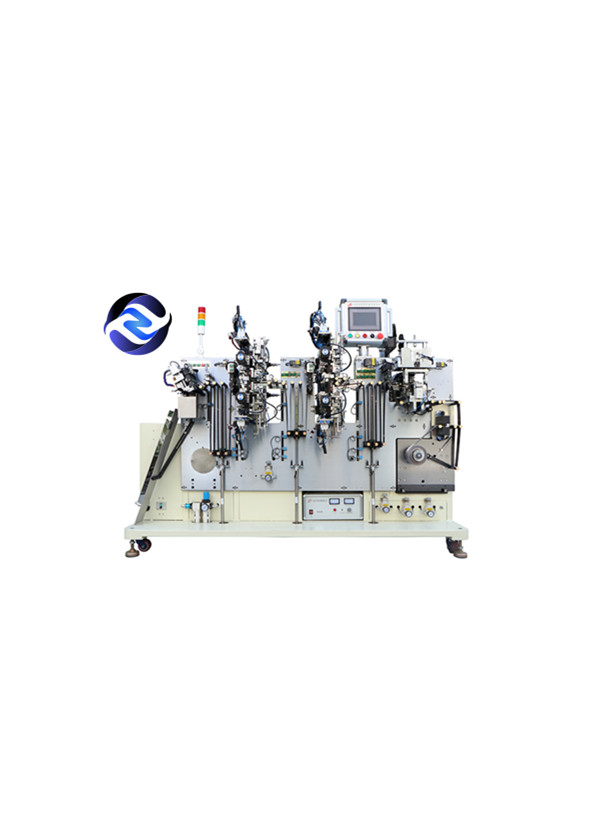

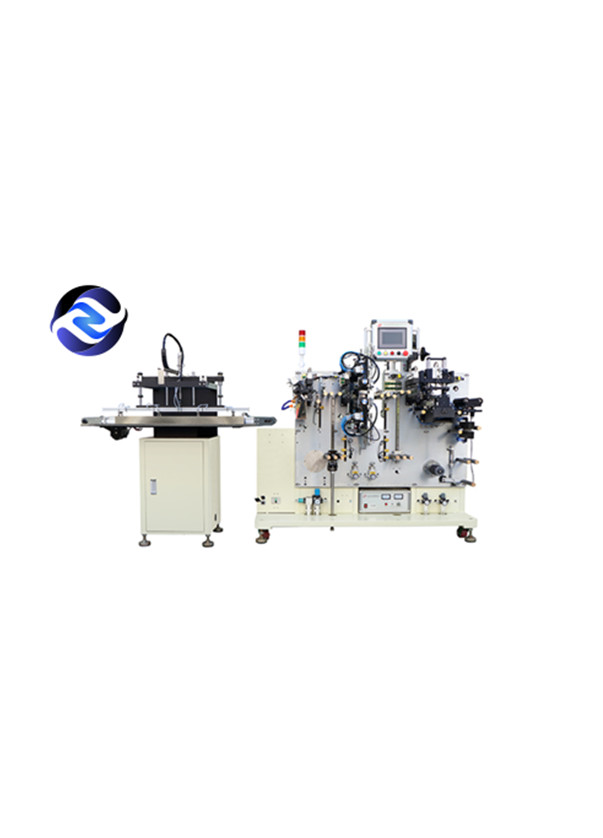

| Name: | Bluetooth Battery Producer 、Winding Machine | Power Input: | AC220V±10%/50Hz |
|---|---|---|---|
| Length Range Of Pole Piece: | 90-1000mm | Width Range Of Pole Piece: | 10-85mm |
| Thickness Range Of Pole Piece: | 50-280um | Polar Lug Length Range: | 30-50mm |
| Polar Ear Width Range: | 1.5-4mm | Polar Lug Thickness Range: | 100-300um |
| High Light: | 1000mm Lithium Battery Machine,automatic Lithium Battery Machine ODM,Bluetooth battery winding machine |
||
| material | Feeding method | Material monolithic length(mm) | Material width(mm) | Base material thickness(um) | Maximum outer diameter(mm) | Inner diameter(mm) | ||
| Size range | Size range | tolerance | Size range | tolerance | ||||
| Polar plates | Rolls | 90-1000 | 10-85 | 0.2 | 50-280 | 5 | ∮400 | ∮76.2 |
| Polar ears | Rolls | 30-50 | 1.5-4 | 0.2 | 100-300 | 5 | ∮400 | ∮76.2 |
| Protective tape | Rolls | 10-85 | 5-20 | 0.2 | 20-80 | 5 | ∮200 | ∮76.2 |
remark:1, Pole sheet coating clearance error:±1mm
2, The polar blanks are aligned with the error between the front and back:±1mm
3, Serpentine bending error for single-piece pole pieces:1.0mm/1000mm
