Jiangsu Zhiyao Intelligent Equipment Technology Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | zhiyao |
| Model Number: | LDY16 |
| Minimum Order Quantity: | 1set |
| Price: | Details |
| Packaging Details: | Wooden packing |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets / month |

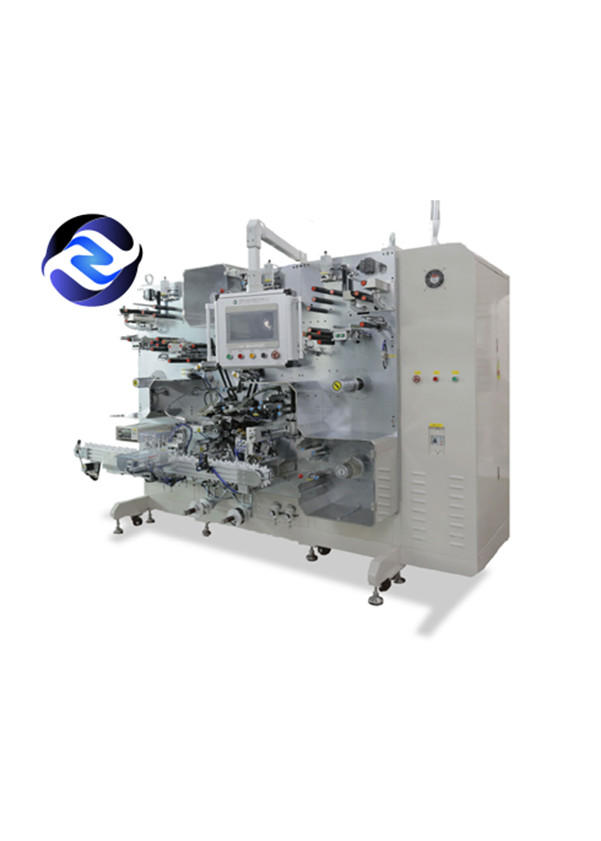

| Name: | Winding Machine、 Cylindrical Cell Winding Machine、Lithium Battery Production Line | Function: | This Equipment Is Used For The Production Of Cylindrical Lithium-ion Battery Cells. Weld The Positive And Negative Pole Pieces, Diaphragms, Fixed On The Respective Discharge Shafts, After Automatic Unwinding, Real-time Correction, Complete The Cell Winding |
|---|---|---|---|
| High Light: | polar 60mm Lithium Battery Production Line,Cylindrical cell Lithium Battery Production Line,manual winding machine OEM |
||
| Device model | LDY16 | LDY18 | LDY32 | LDY46 |
| Polar width | 10-60mm | 40-65mm | 60-130mm | 60-90mm |
| Pole length | 120-500mm | 350-1800mm | 1000-4600mm | 3000-5000mm |
| Diaphragm width | 10-62mm | 50-70mm | 60-130mm | 60-90mm |
| Pole bank diameter | ∮7-∮14 mm | ∮14-∮32 mm | ∮25-∮42 mm | ∮30-∮50 mm |
| Needle diameter | ∮2-∮4 mm | ∮3-∮4 mm | ∮5-∮6 mm | ∮6-∮8 mm |
| Stop tape width | 10-60mm | 20-65mm | 60-130mm | 20-80mm |
| Extreme ear exposure length | 8-30mm | 8-25mm | 8-30mm | |
| Winding alignment | ±0.3mm | ±0.3mm | ±0.3mm | ±0.5mm |
| velocity | ≥30(400mm) | ≥32(700mm) | 15(2500mm) | 18(4300mm) |
| Crop rate | ≥98% | |||
| Yield rate | ≥99% | |||
| weight | 2400KG | 2400KG | 2800KG | 3500KG |
| Dimensions | 2800*1500*2200mm | 2800*1500*2200mm | 2800*1900*2300mm | 3300*2300*2350mm |
