Jiangsu Zhiyao Intelligent Equipment Technology Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | zhiyao |
| Model Number: | CS-2036 |
| Minimum Order Quantity: | 1set |
| Price: | $5500/set |
| Packaging Details: | Wooden packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets / month |
| Name: | Ultrasonic Metal Welding Machine | Power Input: | AC220V±10%/50Hz |
|---|---|---|---|
| Power: | 3600W | Frequency: | 20KHZ |
| Pressure Range: | 0.05-0.6Mpa | Working Mode: | Time And Energy |
| Welding Size: | According To Customer Needs | ||
| Highlight: | 20K Lithium Battery Machine,3600W Lithium Battery Machine,solar panels multi metal welding machine |
||

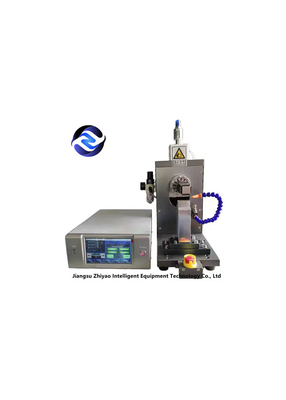

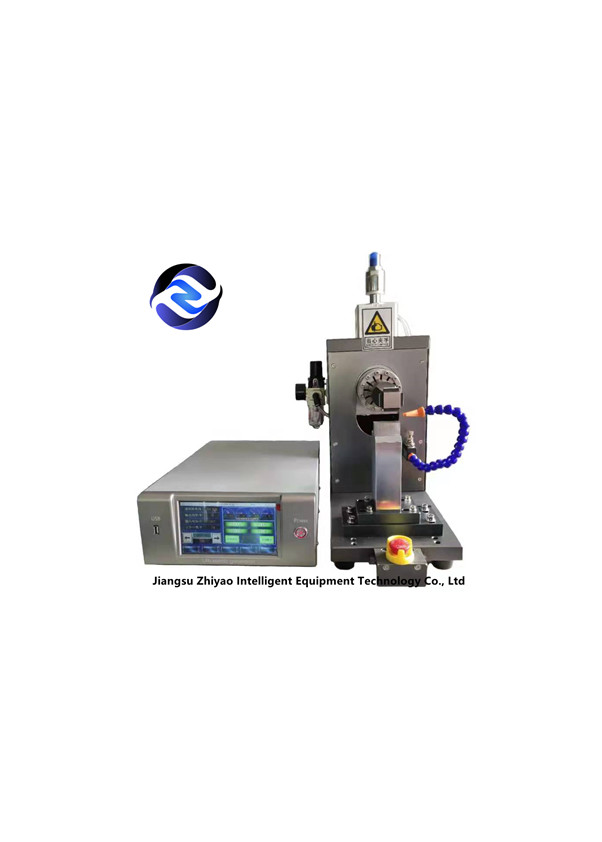

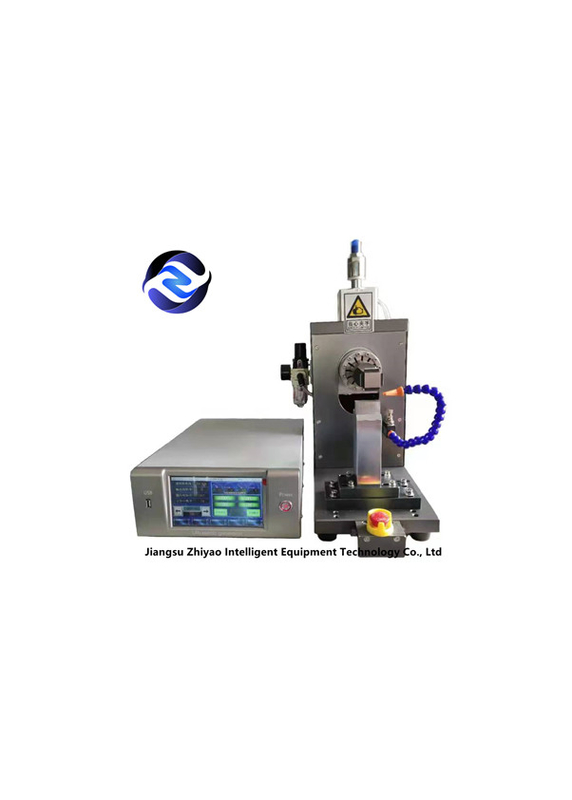

20K3600W Ultrasonic metal welding machine
Ultrasonic metal spot welding machine adopts microcomputer control, stable welding performance, excellent consistency. It is used by more well-known battery manufacturers to weld the pole ear end welding of new energy power batteries. It can also be used in PACK welding, soft connection sheet, solar panels, wire terminals, IGBT power modules, transformers, capacitors, connectors, heat sinks, copper tube sealing, battery coils and other welding fields.
Features:
◆ PLL all-digital ultrasonic system;
◆ The rise and fall speed of the welding head can be accurately controlled and adjusted;
◆ Can accurately locate the upper and lower positions of the welded structure;
◆ When the voltage fluctuates, the ultrasonic generator can automatically compensate the output voltage value to ensure the stable output of the amplitude of the solder head segment;
◆ Time, energy, continuous, segmented and other work modes;
◆ The interface has the current mode, current number, current frequency, current amplitude, current power, current energy;
Parameters:
| Model | Power input | Out power | Frequency | Pressure range | Welding process | Unit price |

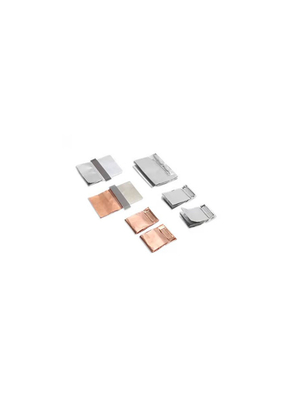

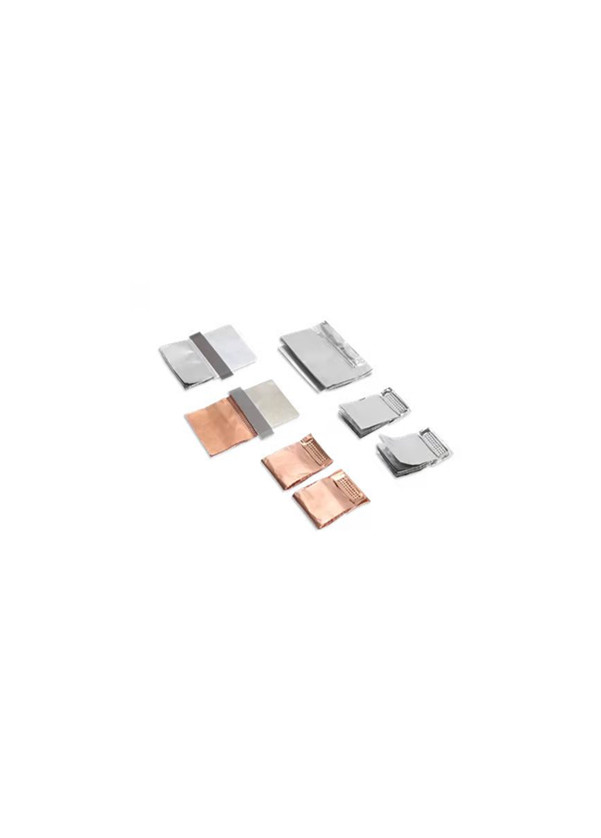

| CS-2036 | AC220V±10%/50Hz | 3600W | 20KHz | 0.05-0.6Mpa | ①10 ~ 60 layers of copper foil + pure nickel or nickel plated copper pole ear welding, solder joints 4 * 6, 4 * 8, 4 * 10, 4 * 12mm; ②10~ 60 layers of aluminum foil + pure aluminum pole ear welding, solder joints 4 * 6, 4 * 8, 4 * 10, 4 * 12mm; ③Nickel or nickel plated copper pole ear wrapped welding 10 ~ 40 layers of copper foil, solder joints 4 * 6, 4 * 8, 4 * 10, 4 * 12mm; ④Aluminum pole ear wrapping 10 ~ 40 layers of aluminum foil, solder joints 4 * 6, 4 * 8, 4 * 10, 4 * 12mm; ⑤Aluminum to nickel or aluminum to nickel plated copper, solder joints 4 * 6, 4 * 8, 4 * 10, 4 * 12mm; ⑥Aluminum pole ear 2 ~ 4 layer welding; nickel pole ear 2 ~ 4 layer welding; solder joint 4 * 6, 4 * 12mm. |
$5500 |
