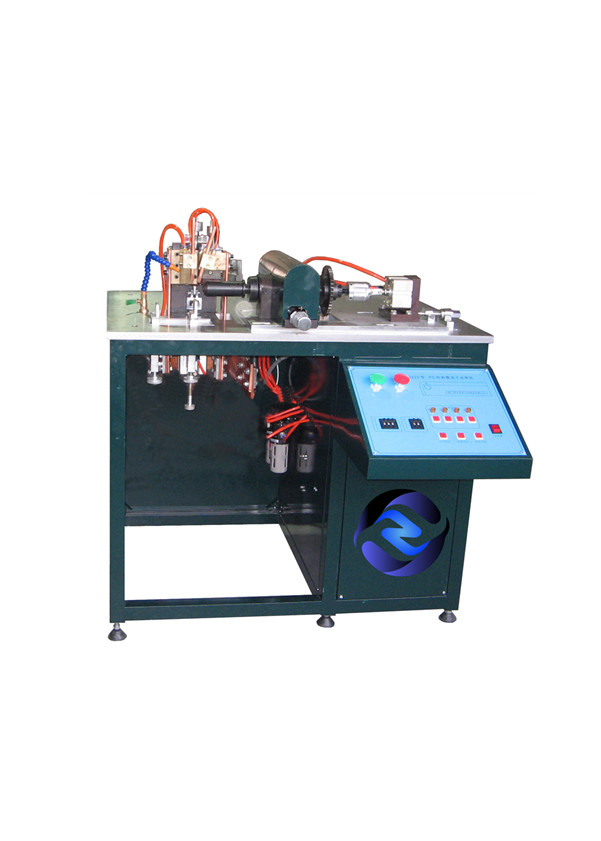

50KVA Rectifier welder

Basic Information

Place of Origin:	China
Brand Name:	zhiyao
Model Number:	ZYL50

Minimum Order Quantity:	1set
Price:	＄12000/set
Packaging Details:	Wooden packing
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	50 sets / month

Get Best Price Contact Now

Name:	Rectifier Welder	Input Voltage:	380VAC± 10%50HZ/60HZ
Capacity:	50KVA	Primary Current:	90A
Load Sustainability:	20%	Welding Pressure:	2000N
Rectifier Diameter:	≤ ¢80	Cooling Water Pressure:	0.5Mpa

Application range:

This machine is suitable for the welding of rotor windings and fairing block lugs of micro motors. It can also be used for other similar plate and wire welding. With pre-pressure, maintenance, welding time, heat, welding method and other parameter settings for actual modification, with counting function, and can save a variety of workpiece parameters, easy to operate, the whole machine automation degree is high, is the ideal equipment for micro-motor production.

Technical parameters:

Input voltage: 380VAC± 10%50HZ/60HZ

Capacity: 50KVA

Primary current: 90A

Load Sustainability: 20%

Welding pressure: 2000N

Rectifier diameter: ≤ ¢40

Cooling water pressure: 0.5Mpa

Working process: The workpiece is placed on the V-shaped tooling→ step on the switch→ spot welding→ rotate the workpiece→ cycle to the completion → take out the workpiece
