75KVA Seam welding machine

Basic Information

Place of Origin:	China
Brand Name:	zhiyao
Model Number:	ZYF75

Minimum Order Quantity:	1set
Price:	＄10000/set
Packaging Details:	Wooden packing
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	100 sets / month

Get Best Price Contact Now

Name:	Seam Welding Machine	Power Supply:	380V/AC 50HZ,150A
Rated Power:	75KVA(50%Duty Cycle)	Secondary Short-circuit Current:	22KA
Electrode Pressure:	7500N	Electrode Working Stroke:	80mm
Maximum Welding Capacity:	1+1 Mild Steel	Air Source:	≥0.5MPa
Cooling Water Pressure:	≥0.3MPa	Cooling Water Flow:	9L/Min

Seam welding is a kind of metal welding that forms a permanent combination, when welding, the weldment deposit is between the two welding wheels, the welding wheel is rotated to drive the weldment and energized, the welding current is heated by the weldment locally, forming a continuous weld that overlaps successively to form a continuous weld, to achieve permanent links, widely used in the box: such as automobile motorcycle fuel tank, barrel body: such as steel drum, and the formation of plate workpieces, such as wheel rim silence / radiator and so on.

The seam welding machine is usually composed of frame, pressurized structure, weld wheel (electrode), welding power supply, speed regulation transmission mechanism and controller.

1: Pressurization mechanism: transmit pressure, uniformly adjust the pressure between the welding wheels and compensate for electrode wear,

2: Welding wheel: using internal external water cooling, conductive block using pure silver tile structure, good conductivity and automatic compensation of wear function,

3: speed regulation transmission mechanism: the use of frequency conversion speed regulation gear reducer transmission,

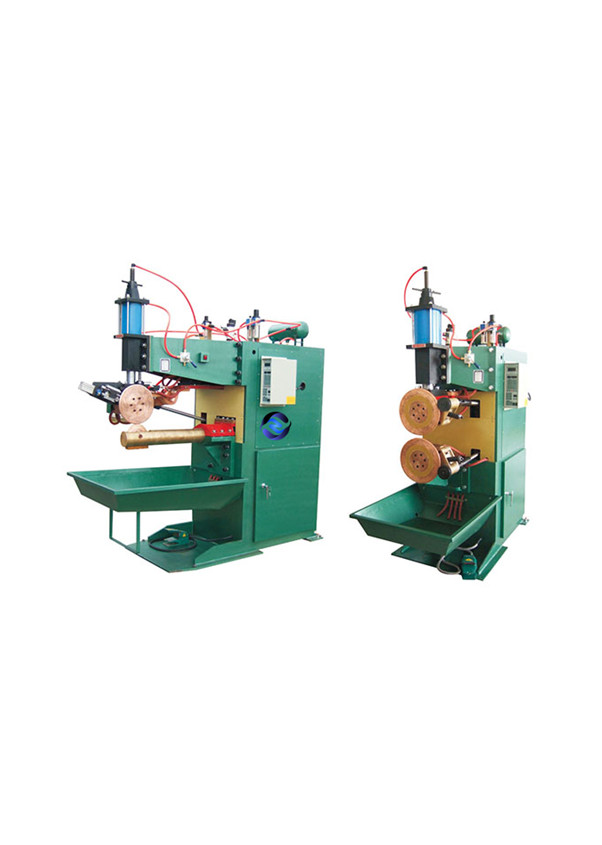

4: Seam welding machine has two forms of longitudinal seam welding and cross seam welding, which is suitable for various workpiece welding needs.

power supply

Rated power

Secondary

short-circuit current

Electrode pressure

Electrode

working stroke

Maximum

welding capacity

Air source

Cooling

water pressure

Cooling

water flow

380V/AC

50HZ,150A

75KVA(50%Duty Cycle)

22KA

7500N

80MM

1+1

mild steel

≥0.5MPa

≥0.3MPa

9L/Min
